D9800 CISCO/Synamedia

D9800 MS CISCO/SYNAMEDIA .

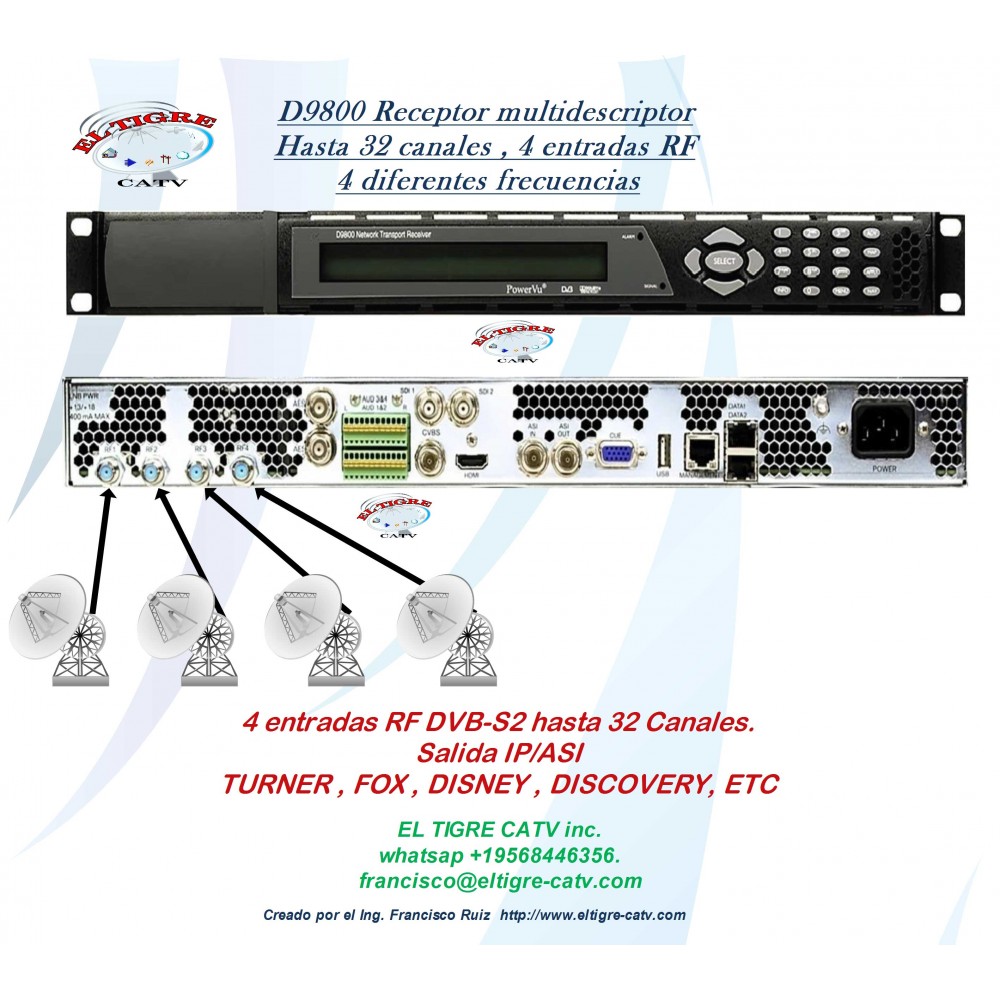

Receptor de satelite con 4 entradas rf dvb-s2 independientes, multiple descriptor hasta 32 canales. Opciones de transcoder de H264 a MPEG2 para soportar las Televisiones que solo leen el mpeg2 video. Salida ASI/IP.

Standard modelo viene con 1rf dvb-s2 activada , Licencia extra para cada entrada rf dvb-s2 y para transcodinf a mpeg2.

Common Features
• Four independent RF inputs with licensable independent tuner/demodulators
• Forward Error Correction (FEC) based on SMPTE 2022 for MPEGoIP input and output
• DVB-S Quaternary Phase Shift Keying (QPSK) demodulation
• Licensable DVB-S2 QPSK and eight-phase shift keying (8PSK)
• Synamedia PowerVu® conditional access with Data Encryption Standard (DES) or DVB descrambling
• Optional DVB-CI support for CAM-based conditional access
• Aspect ratio conversion (4:3, 16:9, 14:9) with Active Format Descriptor (AFD) control for SD programs
• AFD support for down-conversion of HD programs with aspect ratio conversion
• Fingerprint-triggered output to identify piracy sources
• Field-upgradeable software
• Simple Network Management Protocol (SNMP) for setup, control, and monitoring
• Front panel Liquid Crystal Display (LCD) for control and monitoring
• Web browser interface for easy setup, control, and monitoring
• Digital program mapping providing uplink control for service replacements in blackout areas
• Synamedia Live Event Controller support
• Satellite disaster recovery support with Synamedia PowerVu Network Center uplink control (V12.5 or
later)
• Onscreen display support on transcoded or baseband output
• Ancillary data support: ST2010, ST2016, ST2031, ST334, OP-47, ST2038
