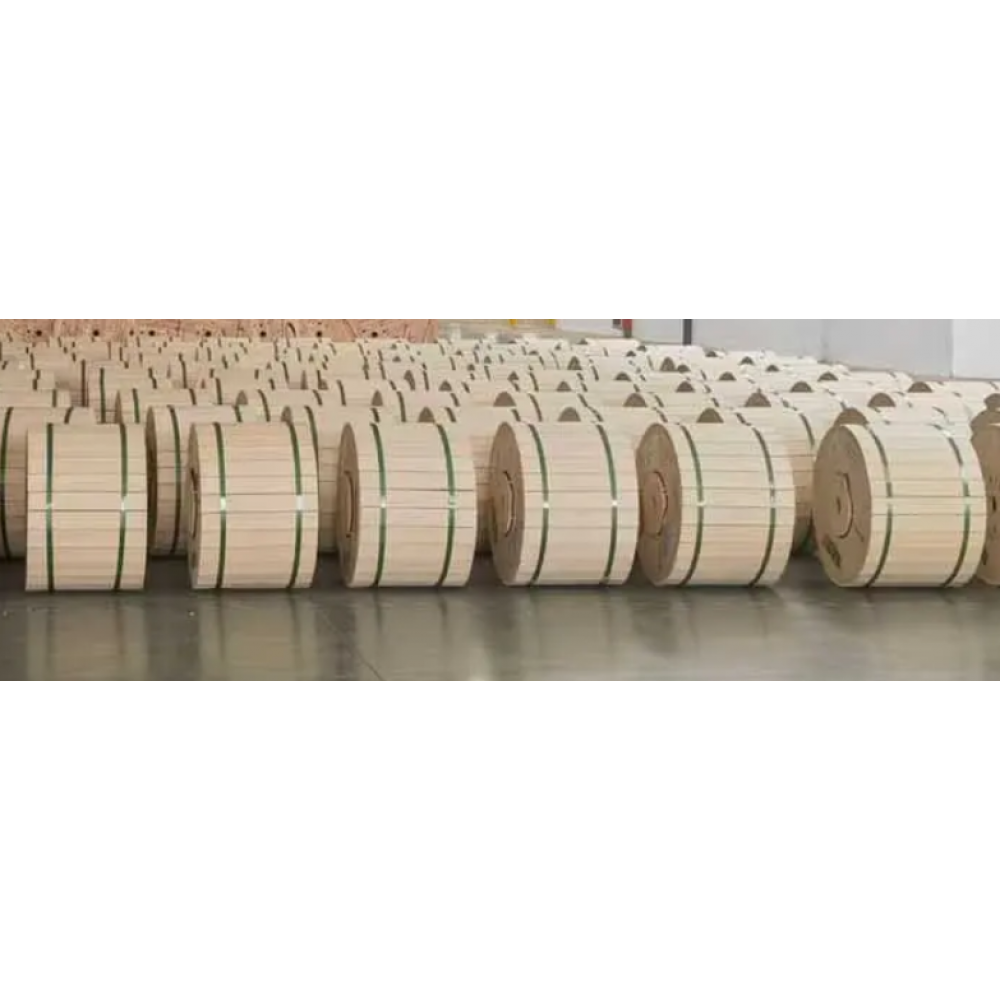

Fiber Optic cable ASU ADSS 6, 12 ,24 counts 4 kmts reel 80 M SPAN

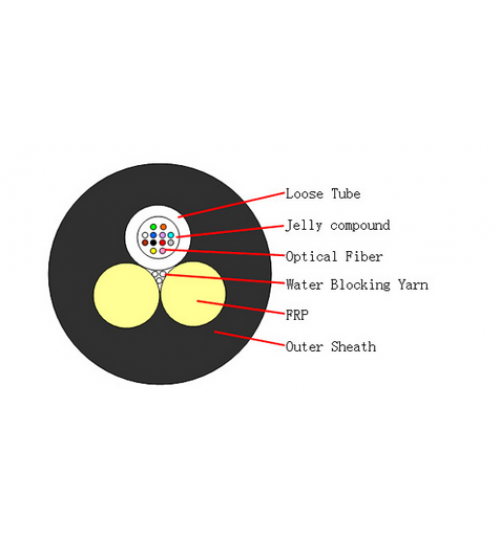

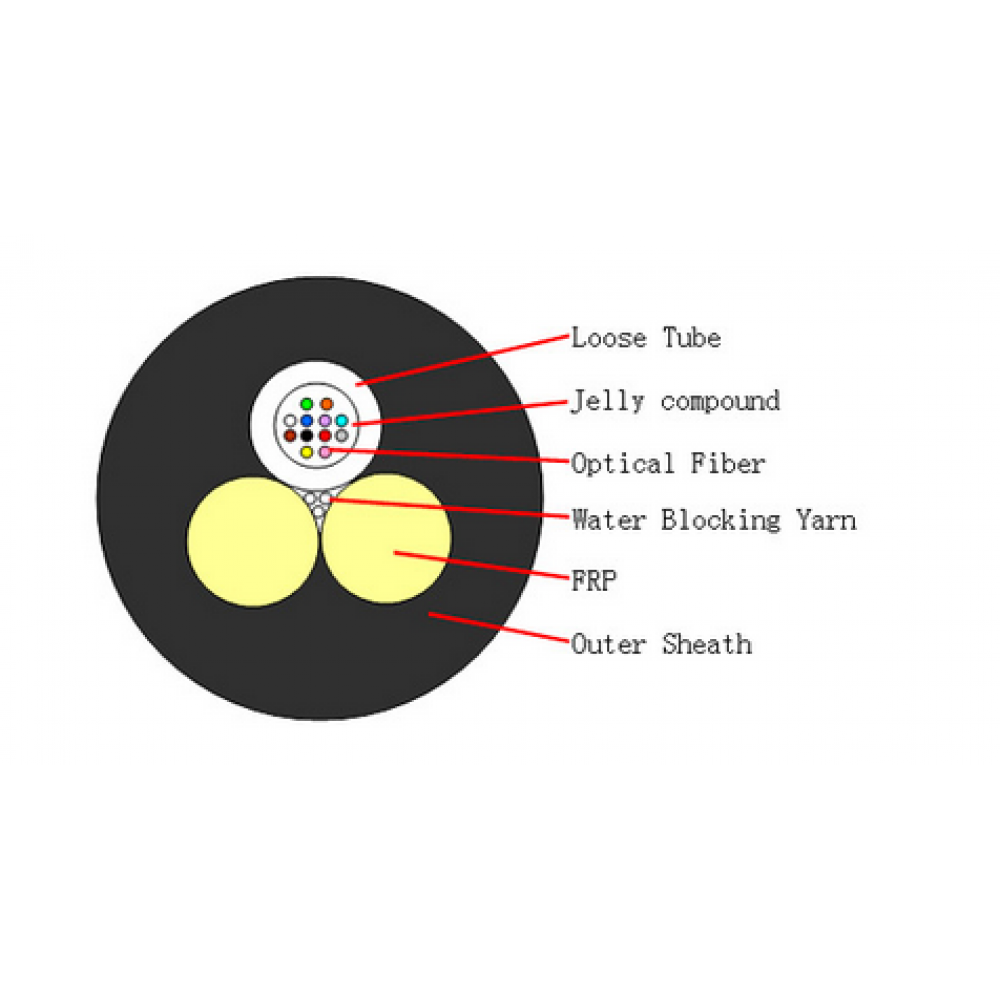

Material

Fiber type

ITU-T G.652

Loose tube

PBT (polybutylene terephthalate)

Strength member

FRP (Fiber Reinforce Plastic)

Outer jacket

HDPE (PolyEthylene)

Cores

1 – 24cores

Span*

80 m

Diameter

Strength member

Φ2.0 ±0.1 mm

Loose tube

Φ2.0±0.2 mm

Cable

Φ7.0±0.3 mm

Cable weight

44 kg/km

Max installation tension

850 N

*: Max wind speed: 25 m/s, no icing.

Attenuation

≤ 0.40 dB/km @1310 nm    ≤ 0.30 dB/km @1550 nm

Tensile strength

See table above (IEC 60794-1-21 E1)

- Additional attenuation after test ≤ 0.05 dB@1550nm

Crush resistance

1000 N/100mm (IEC 60794-1-21 E3) -No fiber break, no sheath damage

Minimum bending radius

Dynamic: 20·D+      Static: 10·D                       + : D = Cable diameter

Operating

Transportation & Storage

Installation

-20~+65℃

-20~+65℃

-10~+55℃
