onu gpon HG8546M Huawei
- Product Code: HG8546M
- Availability: Out Of Stock

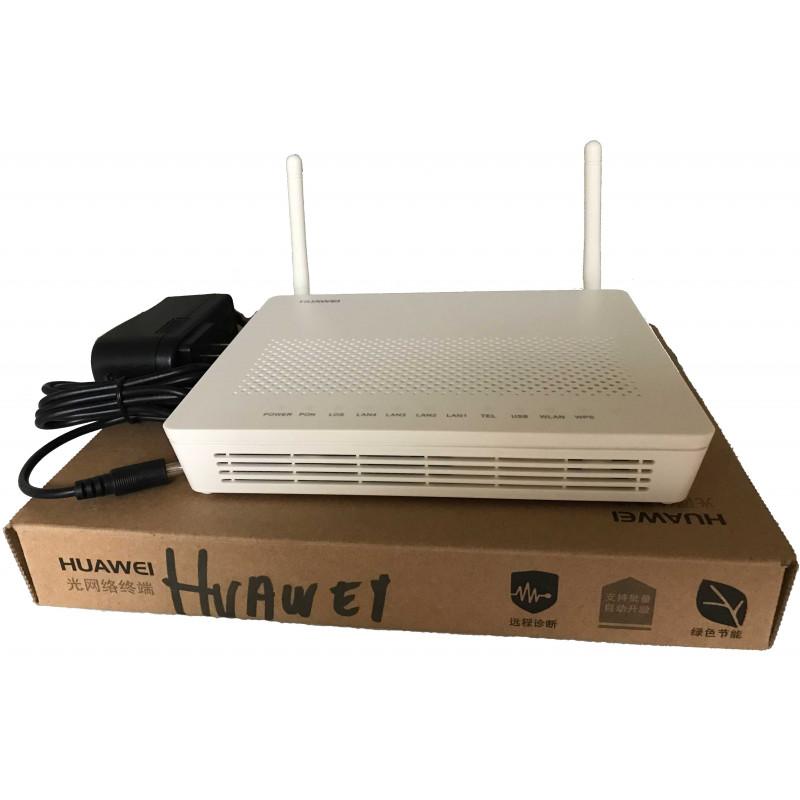

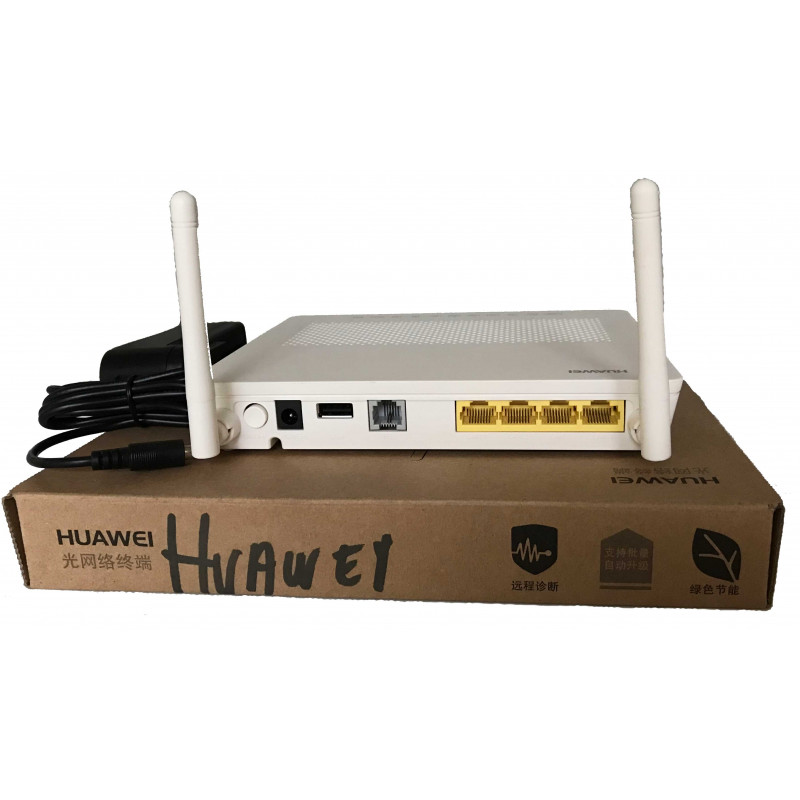

Onu Huawei gpon HG8546M new
Product Description
Item Parameters Specification
Interface
PON Port
1 GPON optical interface
Meet 1000BASE-PX20+ standard
Symmetric 1.25Gbps upstream/downstream
SC single-mode fiber
split ratio: 1:64
Transmission distance 20KM
Ethernet Port(LAN)
1*GE Auto-negotiation RJ45 ports
Full Duplex / Half-Duplex
RJ45, Auto-MDI/MDI-X
Transmission Distance 100 Meter
Power Supply Port 12V DC input
Management
NetworkManagement
Support IEEE802.3 QAM, ONU can be remotely managed by OLT
Support Remote management through SNMP and Telnet
Local management
Management Function Status monitor, Configuration management, Alarm management, Log management
Environmental
Specifications
Shell Plastic casing
Power
External 12V 0.5A AC/DC power supply adapter
Power consumption: <3W
Dimensions
78mm(L) x78mm(W) x25mm (H)
0.1kg
Environment
Operating Temperature:0~50℃
StorageTemperature:-40~85℃
Operating Humidity:10%~90%(Non-condensing)
StorageHumidity:5%~95%(Non-condensing)
