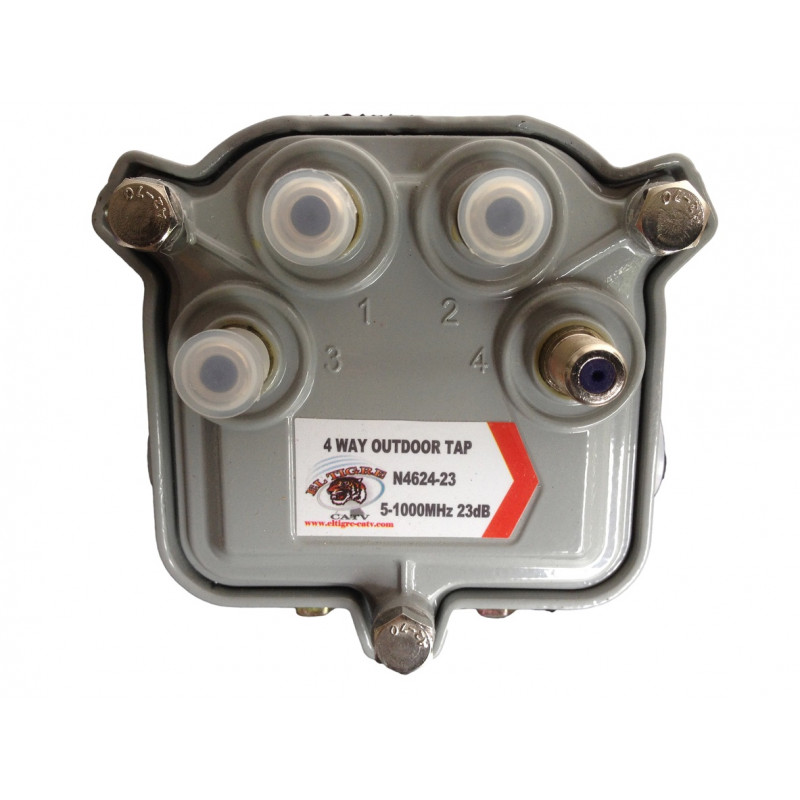

FEATURES AND SPECIFICATION

• Aluminum alloy housing is finished with a baked acrylic paint.
• Continual power through between input and output.
• uninterrupted power and RF service
• Neoprene sealed and nickel-plated brass for all taps "F-(f)" port.
• Aerial or pedestal installation with 5/8 port entry
• Tongue and groove design and with a stainless steel
• mesh RF gasket to ensure 100dB RF integrity
• FR4 PCB for consistency of specifications in all bandwidth
• High quality ferrites, SMD resistors and capacitors
• Return loss all ports: 5-750MHz, 20dB min;750-1000MHz, 18dB min
• Hum modulation at 10 Amps: 60dB max
• In-Out Power passing: 12 Amps 60VAC
• Impedance: 75Ω all ports
