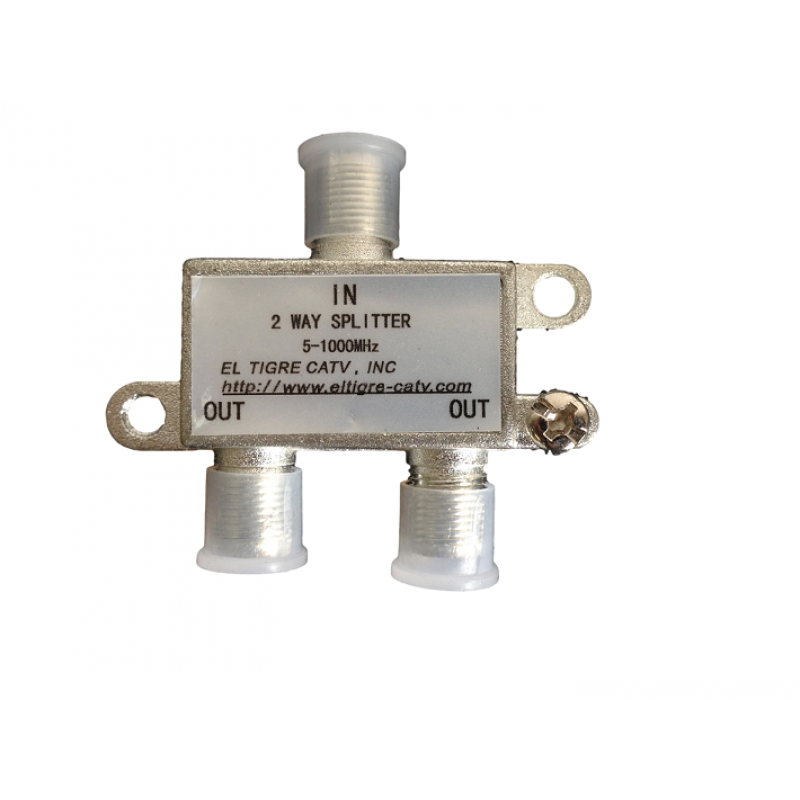

FEATURES AND SPECIFICATION

• Zinc die cast housing, nickel-plated
• Screening factor: 30-300MHz ≥85dB;300-470MHz ≥80dB; 470-1000MHz ≥75dB
• Bandwidth: 5-1000MHz
• Low insertion loss, high return loss and isolation
• FR4 PCB for consistency of specifications in all bandwidth
• High quality ferrites, SMD resistors and capacitors
• Each unit is individually packed in PE bag
• Grounding terminal provided
• All ports DC block; Connector: F female, 75ohm
• Return loss all porst: 5-750MHz,18dB min; 750-1000MHz, 16dB min.
