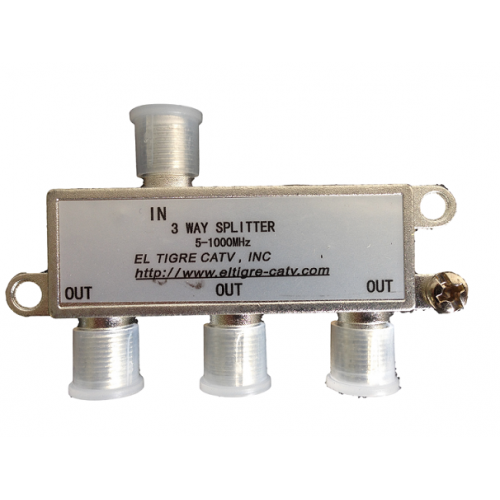

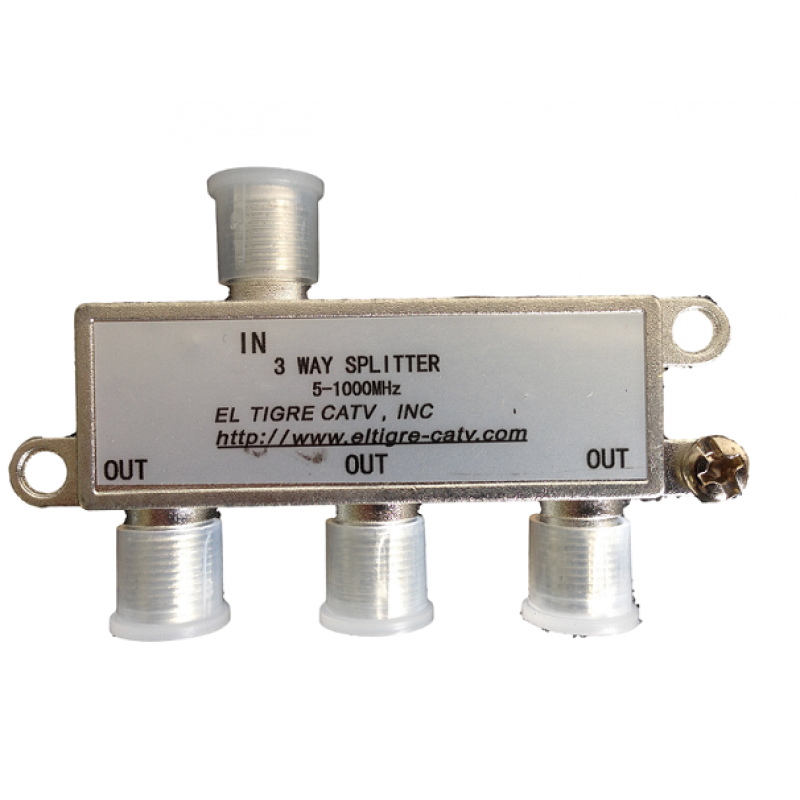

Splitter 3 ways indoor el tigre catv
- Product Code: Splitter 3 ways indoor
- Availability: Out Of Stock
FEATURES AND SPECIFICATION
- Zinc die cast housing, nickel-plated
- Screening factor: 30-300MHz ≥85dB;300-470MHz ≥80dB; 470-1000MHz ≥75dB
- Bandwidth: 5-1000MHz
- Low insertion loss, high return loss and isolation
- FR4 PCB for consistency of specifications in all bandwidth
- High quality ferrites, SMD resistors and capacitors
- Each unit is individually packed in PE bag
- Grounding terminal provided
- All ports DC block; Connector: F female, 75ohm
- Return loss all porst: 5-750MHz,18dB min; 750-1000MHz, 16dB min.
